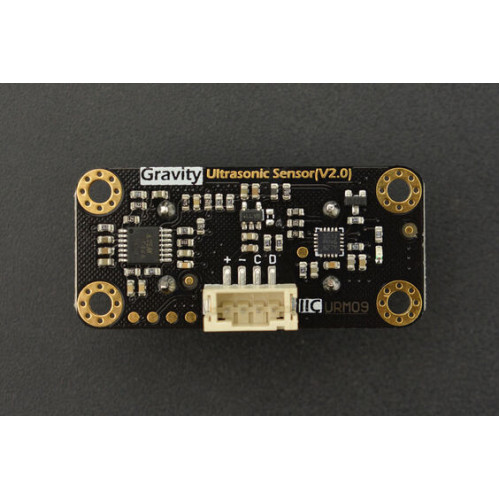

-500x500.jpg "Gravity: URM09 Ultrasonic Distance Sensor (2～500cm, I2C)")
Introduction
DFRobot URM09 is an ultrasonic sensor specifically designed for fast ranging and obstacle avoidance application. Its measuring frequency can reach up to 50Hz. The sensor adopts built-in temperature compensation and I2C communication. There are three measurement ranges designed for programs to select: 150cm, 300cm and 500cm. Please note that shorter range will provide shorter ranging cycle and lower sensitivity. You may need to set it according to your actual use. Besides, the sensor is equipped with on-board LDO, which is able to avoid performance attenuation within power supply range.
Specification
- Supply Voltage: 3.3~5.5V DC
- Operating Current: 20mA
- Operating Temperature Range: -10℃～＋70℃
- Measurement Range: 2cm～500cm (can be set)
- Resolution: 1cm
- Accuracy: 1%
- Frequency: 50Hz Max

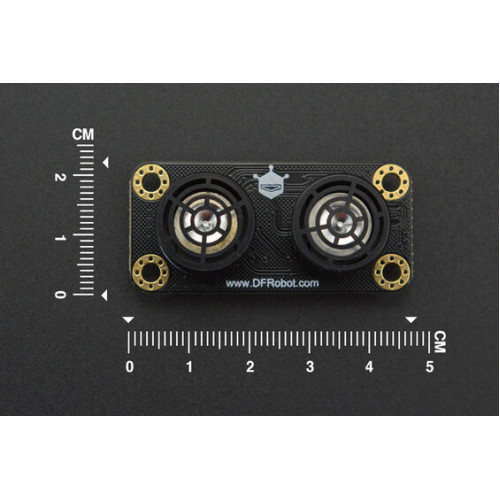

- Dimension: 47mm × 22 mm/1.85”× 0.87”
Documents

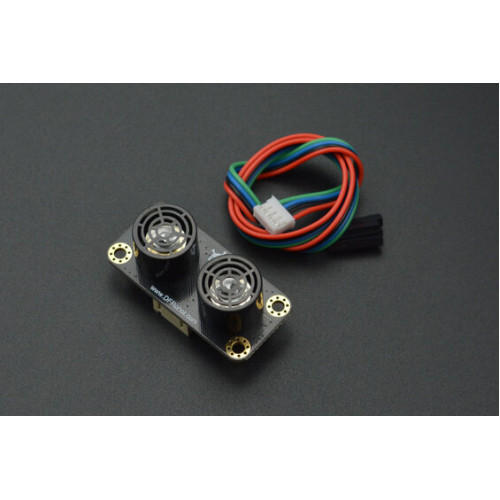

Shipping List
URM09 Ultrasonic Sensor(Gravity I²C)(V1.0) x1
PH2.0-4P Connector x1
| Specification | |
| Accuracy | 1% |
| Baud Rate | 115200 bps |
| Cable Lenght | 15cm |
| Connector | Gravity |
| Output | I2C |
| Resolution | 1cm |
| Power | 3.3~5.5V DC |
| Range Output | 2cm～500cm (can be set) |
Gravity: URM09 Ultrasonic Distance Sensor (2～500cm, I2C)
- Brand: DFROBOT
- Product Code: SEN0304
- Availability: In Stock
-
$224,000.00
- Ex Tax: $224,000.00
Tags: ultrasonic distance sensor, ultrasonic, ultrasonik, sensor jarak ultrasonik
