Introduction

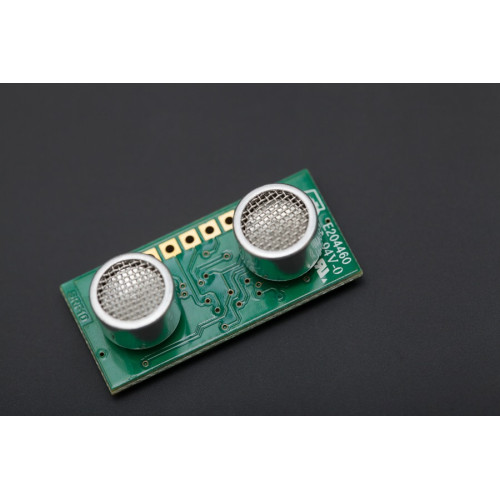

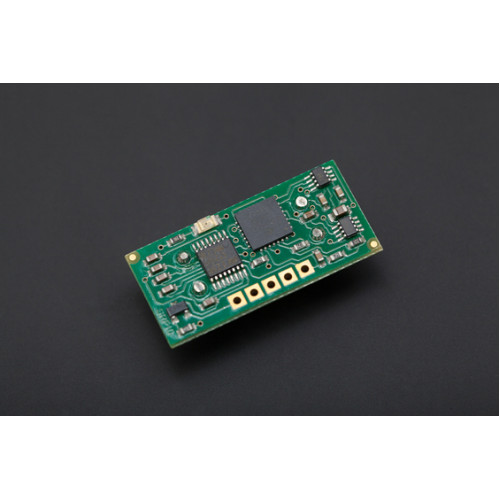

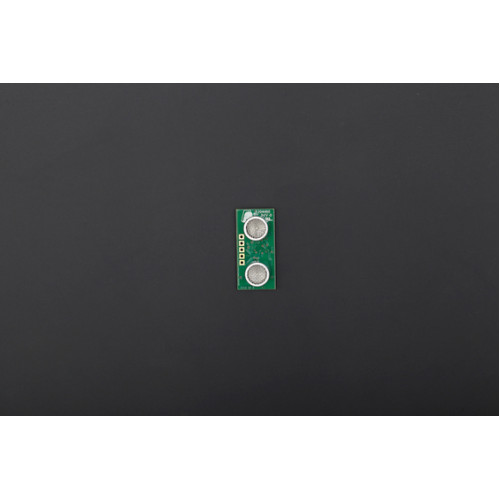

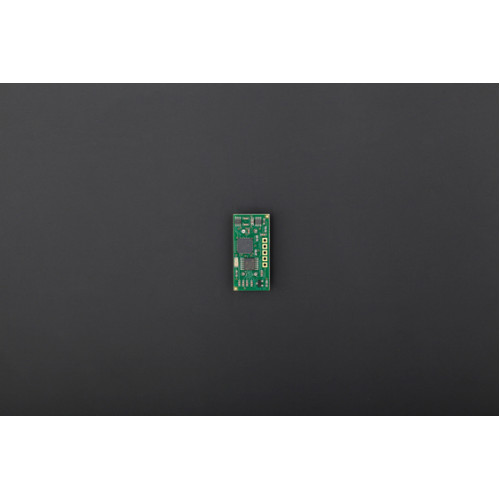

This small sonar ranger from Devantech offers an amazing wide range from 3cm to 6m. The SRF10 is interfaced using the I2C bus.
SRF-10 Ultrasonic sensor with Arduino Review
Specification
- Voltage-5v
- Current-15mA Typ. 3mA Standby
- Frequency-40KHz
- Maximum Range-6 m(236.2'')
- Minimum Range-3 cm(1.2'')
- Max Analogue Gain-Variable 40 to 700 in 16 steps
- Connection-Standard I2C Bus
- Timing-Fully timed echo, freeing host computer of task
- Units-Range reported in uS, mm or inches
- Size -1.25in w x 0.59in d x 0.39in h (32mm w x 15mm d x 10mm h)
Documents
Shipping List
- SRF10 ultrasonic sensor x1
| Specification | |
| Connector | fermion |
| Output | Analog, I2C bus |
| Power | 5v |
| Range Output | 3-600cm |
SRF10 - The Worlds Smallest Dual Transducer Ultrasonic Ranger (3~600cm)
- Product Code: SEN0008
- Availability: In Stock
-
$768,000.00
- Ex Tax: $768,000.00
Tags: dual transducer sensor, transducer sensor, ultrasonic sensor
