Introduction
The STMicroelectronics VL6180X Time of Flight Ranging Sensor embeds ST’s patented FlightSense™technology that allows distance to be accurately measured independent of target reflectance. The sensor is rated to perform ranging measurements of 5-100mm, but it can provide readings up to 200mm in a good environment. Besides, VL6180X is also equipped with an ambient light sensor, so basically, this is a sensor that combines proximity ranging and ambient light level measurement capacities into a single package.
Features
- Simultaneous measurement of distance and ambient light
- VCSEL light source
- Strong anti-interference
Specification
- Power Supply Voltage: 3.3V~5V
- Operating Current: ＜5mA
- Measuring Distance: 5-100mm
- Emitter: 940nm invisible laser (VCSEL)
- I2C Address: 0x29
- Operating Temperature Range: -20℃~85℃

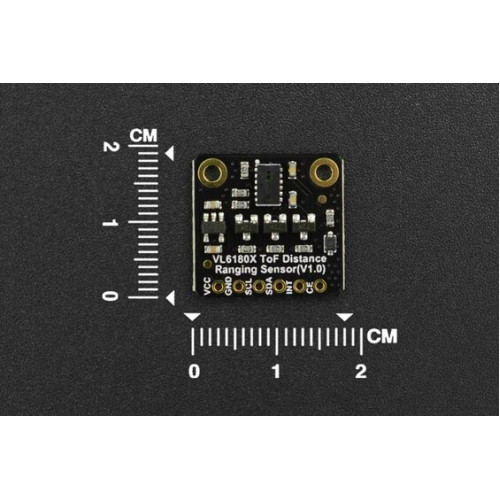

- Product Size: 19*18mm / 0.75*0.71 inch
Documents

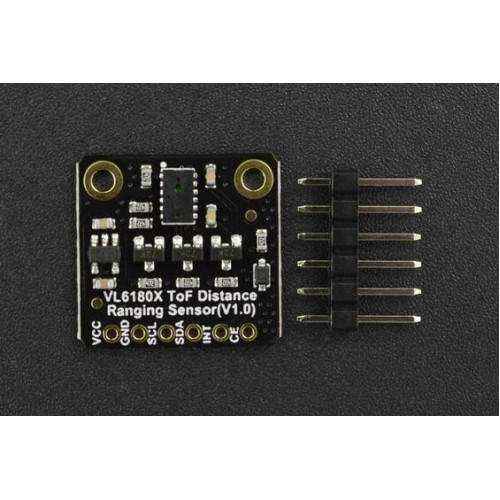

Shipping List
- Fermion: VL6180X ToF Distance Ranging Sensor (Breakout) x1
- 2.54-6P Black Single Row Pin Header x1
| Specification | |
| Baud Rate | 9600 bps |
| Connector | fermion |
| Output | I2C |
| Power | 3.3V~5V |
| Range Output | 3.3V~5V |

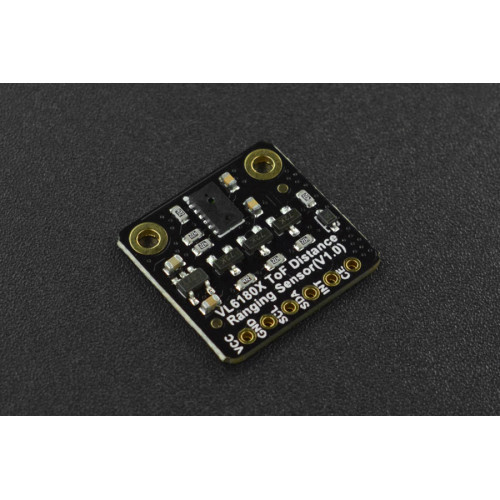

Fermion: VL6180X ToF Distance Ranging Sensor (5-100mm) (Breakout)
- Brand: DFROBOT
- Product Code: SEN0427
- Availability: In Stock
-
$128,000.00
- Ex Tax: $128,000.00
