Introduction
Most ultrasonic distance sensors aren't waterproof which can be a problem if you need your project to withstand the elements outdoors. No need to worry any more! We have developed waterproof ultrasonic distance sensors with a waterproof sealed emitter. This sensor is suitable for outdoor applications such as car reversing sensors, security alarms, industrial inspection, etc. What will you make?
Note: V2 has increased its resolution and accuracy.
Specification
- Operating Voltage: 5V DC
- Static Current: 5mA
- Working Current: 40mA
- Working Range: 21cm ~ 6m
- Working Frequency: 40KHz
- Resolution: 3mm
- Detecting Angle: 70°
- Working Temp: -10 ~ 70°C

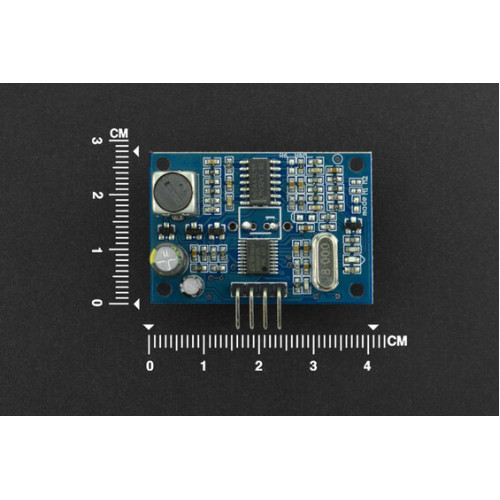

- Size: 41*29*20mm/1.61*1.14* 0.79 inches
- Weight: 14g
Documents
Shipping List
- Water-proof Ultrasonic Sensor x1
| Specification | |
| Baud Rate | 9600 bps |
| Connector | Gravity |
| Output | UART, TTL |
| Resolution | 3mm |
| Power | DC3.0-5.5V Operating Current: ≤8mA |
| Range Output | 21cm ~ 6m |

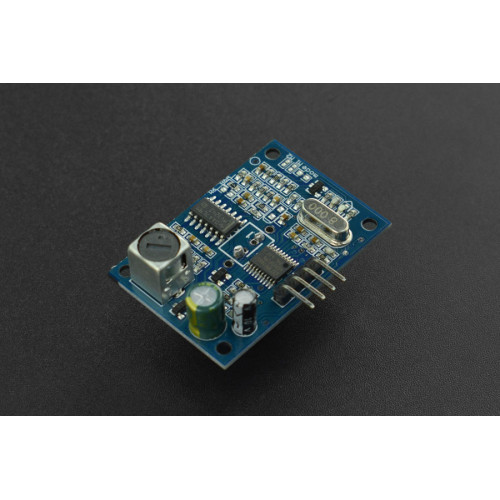

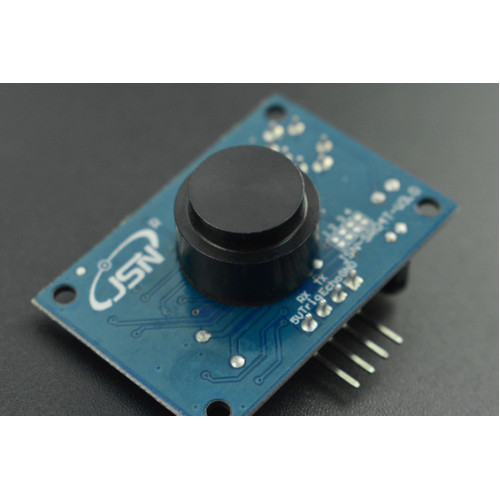

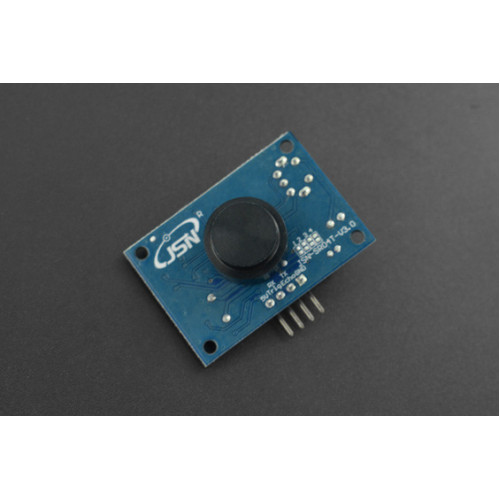

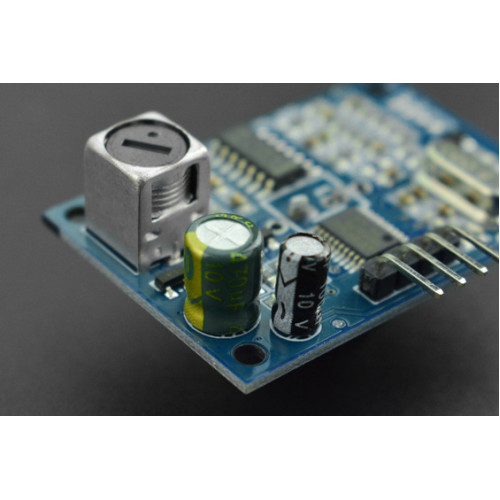

Waterproof Ultrasonic Distance Sensor (21~600cm)
- Product Code: SEN0207
- Availability: In Stock
-
$272,000.00
- Ex Tax: $272,000.00
Tags: waterproof ultrasonic, ultrasonic distance sensor, ultrasonic sensor
