Introduction
The weather resistant MB7386 HRXL-MaxSonar-WRLT has millimeter resolution and a 6Hz read rate, and provides short to long distance detection and range information from 500mm to 9999mm for the nearest detectable target. It includes various output options: pulse-width, analog voltage, and TTL serial.
The MB7386 from the HRXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing which meets the IP67 water intrusion standard and matches standard electrical 3/4-inch PVC pipe fittings.
The HRXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.
In addition, the MB7386 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.
Specification
- Resolution of 1-mm
- 6Hz read rate
- Internal temperature compensation
- 42kHz ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
- Operates from 2.7-5.5V
- Low 2.9mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product
- Operational temperature -40°C to +65°C (-40°F to +149°F)
- Real-time automatic calibration (voltage, humidity, and ambient noise)
- Firmware filtering for excellent noise tolerance and clutter rejection
- Weather resistant (IP67), optional chemical resistant F-Option

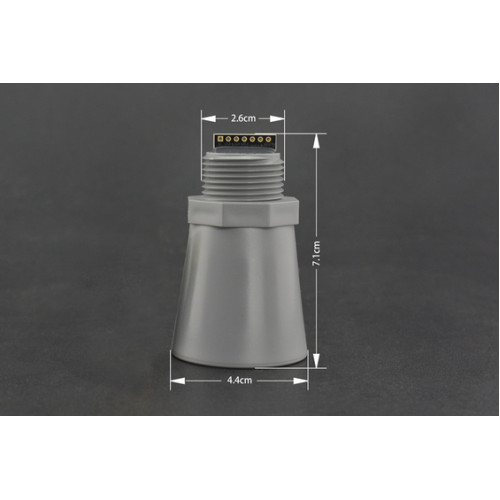

- Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
- Long, narrow detection zone
- TTL Serial Output
- Our longest range, high-resolution outdoor, weather resistant, ultrasonic sensor
- Maximum range of 10 meters (394 inches)
Documents
Shipping List
- HRXL-MaxSonar-WRLT (MB7386) x1
| Specification | |
| Baud Rate | Analog Voltage, Serial, Pulse Width |
| Connector | 50cm - 10 meters (394 inches) |
| Output | Analog Voltage, Serial, Pulse Width |
| Resolution | ±1mm |
| Waterproof Grade | IP67 |
| Power | 2.7-5.5V |
| Range Output | 50cm - 10 meters (394 inches) |

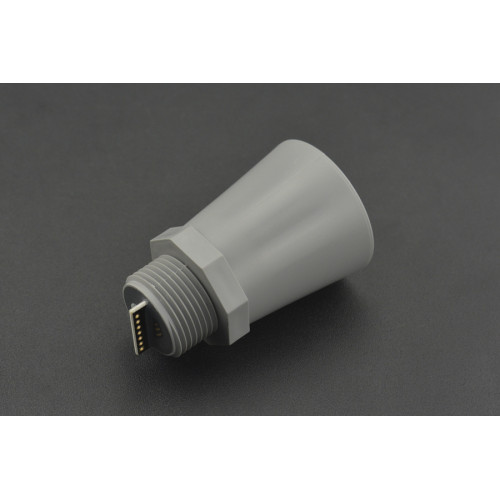

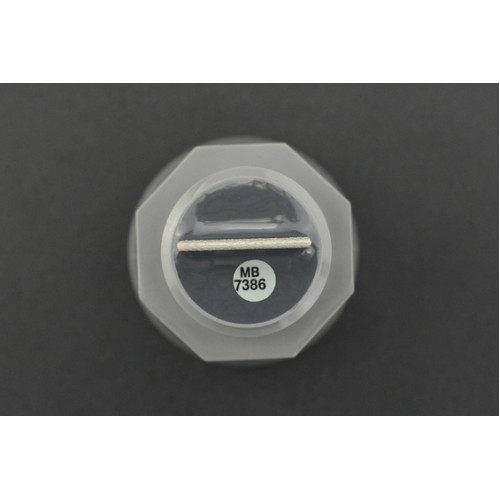

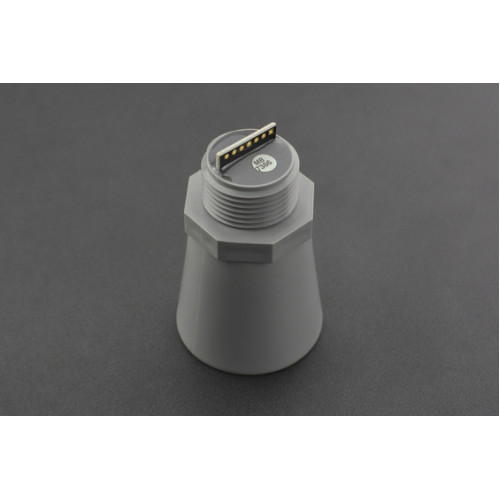

HRXL-MaxSonar-WRLT MB7386 Ultrasonic Distance Sensor
- Product Code: SEN0271
- Availability: In Stock
-
$2,224,000.00
- Ex Tax: $2,224,000.00
Tags: ultrasonic distance sensor, ultrasonic, ultrasonik, sensor jarak ultrasonik
