Introduction

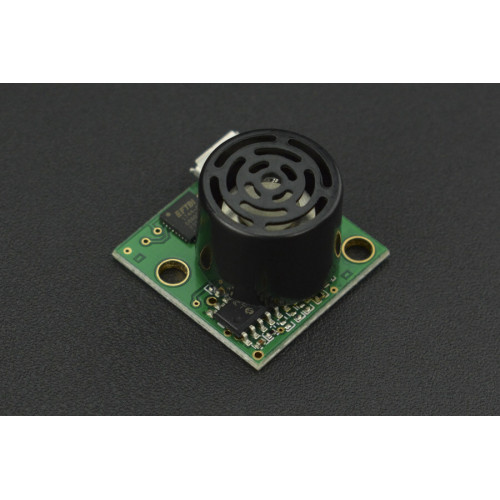

The MB1414 USB-ProxSonar-EZ1 sensor features one-inch resolution and serial data over an easy to use USB interface, providing both proximity and range information for the nearest detectable target.
The USB-ProxSonar-EZ line is designed to detect people or obstacles that enter within a calibrated detection zone. The USB-ProxSonar-EZ proximity sensors report when a person or other detectable target enters the detection zone. The target is released after leaving the USB-ProxSonar-EZ's detection zone.
The MB1414 has a detection zone of ~5 feet. The MB1414 will allow for 8+ simultaneous sensors depending on sensor mounting and environment.
Specification
- USB interface
- ~2.5 second target acquire time*
- ~1.5 second target release time*
- Automatic multi-sensor operation
- People sensor
- Resolution of 1 inch
- Maximum Range of 125 inches (318 cm)
- Detection zone range of 60 inches (152 cm)
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS compliant
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Small, light weight module
- Designed for easy integration into your project or product
- Longest range detection zone
Documents
Shipping List
- USB-ProxSonar-EZ1(MB1414) x1
| Specification | |
| Baud Rate | 57600 bps |
| Connector | Gravity |
| Output | USB interface |
| Resolution | 1 inch |
| Waterproof Grade | IP68 |
| Range Output | 6 inches - 125 inches (318 cm) |
| Motherboard | |
| USB | USB x 1 |
USB-ProxSonar-EZ1 MB1414 Ultrasonic Distance Sensoruino
- Product Code: SEN0279
- Availability: In Stock
-
$928,000.00
- Ex Tax: $928,000.00
Tags: ultrasonic distance sensor, ultrasonic, ultrasonik, sensor jarak ultrasonik
