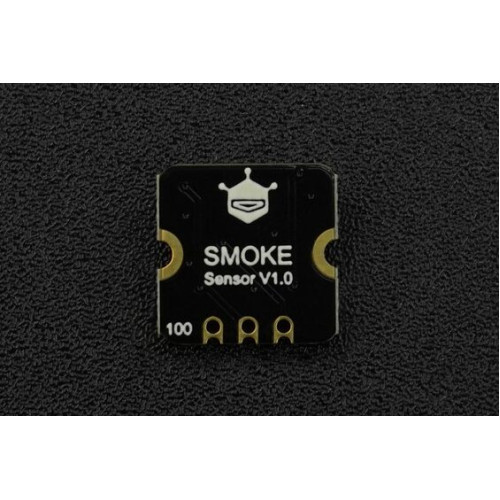

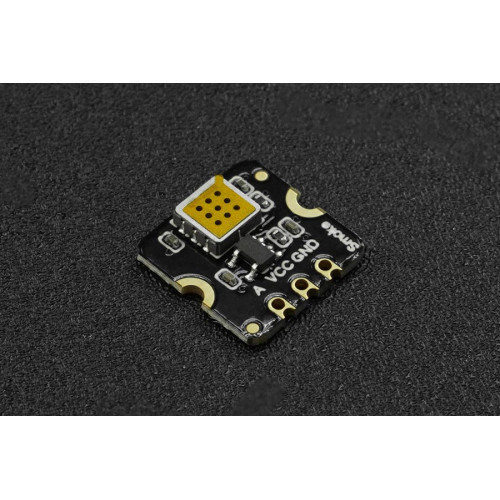

-500x500.jpg "Fermion: MEMS Smoke Gas Detection Sensor (Breakout, 10-1000ppm)")
Introduction
Fermion: MEMS Smoke Gas Detection Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can measure smoke concentration qualitatively and is suitable for smoke alarm and other application scenarios.
The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.
Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical Gas Sensor Series.
Precautions for use
- Kindly remove the protective film before usage.
- To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
- Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
- Prevent contamination from alkalis, alkali metal salts, and halogens.
- Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
- Avoid contact with water, condensation, and freezing.
- Minimize excessive vibration, impact, and dropping.
- Please refrain from employing this module in systems that involve personal safety concerns.
- For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
Features

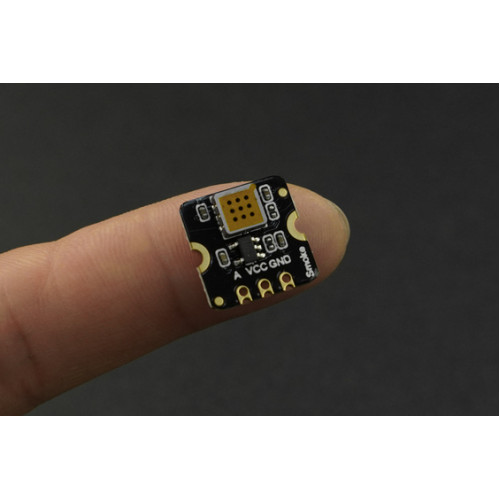

- Compact size, measuring only 13*13*2.5mm
- Low power consumption, operating current ＜20mA
- High sensitivity and rapid response recovery
- Advanced MEMS technology
Applications
- Smoke Alarm
- Specification
- Gas detected: EtOH, Smoke
- Detection range: 10-1000ppm
- Operating voltage: 3.3-5V
- Operating current: ＜20mA
- Output signal: Analog voltage
- Sensitivity: R0(in air)/Rs(in 200ppm EtOH) ≥ 3
- Operating temperature: -10-50℃
- Operating humidity: 15-90%RH (non-condensing)
- Lifespan: ≥5 years (in air)

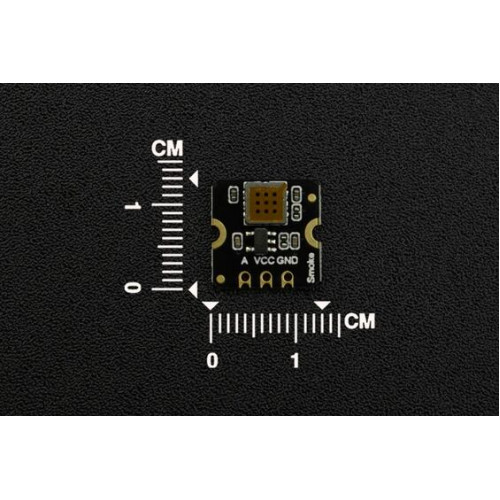

- Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1”
Documents

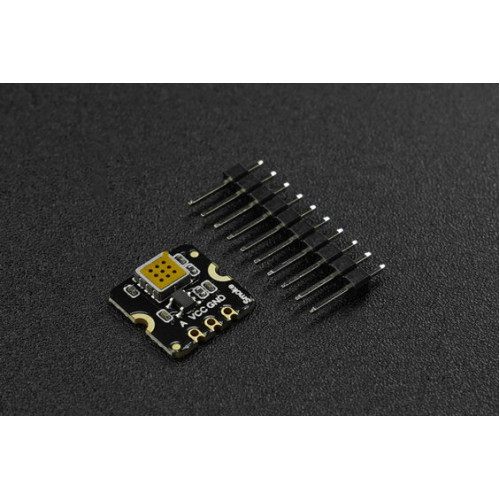

Shipping List
- Fermion: MEMS Smoke Sensor (breakout) × 1
- 2.54mm pitch header pin × 1
| Specification | |
| Baud Rate | 9600 bps |
| Connector | fermion |
| Output | Analog voltage |
| Resolution | R0(in air)/Rs(in 200ppm EtOH) ≥ 3 |
| Power | 3.3-5V |
| Range Output | 10-1000ppm |
Fermion: MEMS Smoke Gas Detection Sensor (Breakout, 10-1000ppm)
- Brand: DFROBOT
- Product Code: EN0570
- Availability: In Stock
-
$96,000.00
- Ex Tax: $96,000.00
Tags: sensor asap, smoke gas sensor, smoke detection sensor, sensor deteksi asap
