Introduction
F1031V Mass Air Flow Sensor adopts thermodynamic principle to detect flow rate of gas medium in the flow channel, with high precision and good repeatability. It comes with built-in temperature sensor to provide temperature compensation for measured data. Meanwhile, the sensor has liner analog voltage output, easy to use. It can be used in applications like ventilator, air purifiers, etc.
Features
- High precision, fast response, good repeatability
- Completely calibrated and temperature compensated
Applications
- Intensive care ventilator
- Portable ventilator
- Industrial process control
- Environment protection
- Air purifier
Specification
- Measuring Range: 150SLM (SLM: standard litre per minute. Standard-state: 20℃ gas temperature and 101.325 kPa gas pressure )
- Power Supply: 5V
- Operating Current: 25mA
- Accuracy: <4%FS
- Response Time: 50ms
- Operating Temperature Range: -25℃~65℃
- Working Pressure: <100kPa
Documents
Shipping List

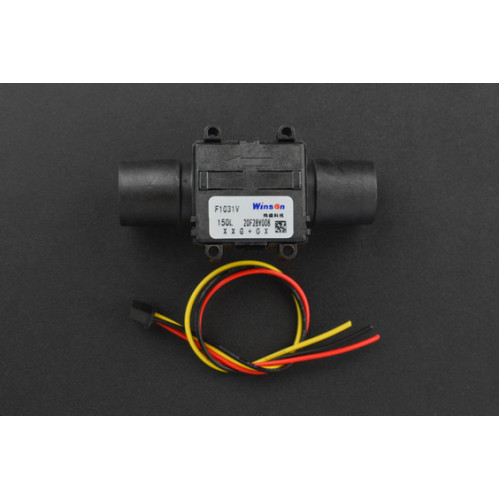

- F1031V Mass Air Flow Sensor x1
| Specification | |
| Accuracy | <4%FS |
| Baud Rate | 9600 bps |
| Cable Lenght | 15cm |
| Connector | Gravity |
| Output | Analog |
| Refresh rate | 90Mhz |
| Waterproof Grade | IP68 |
| Power | 5V |
| Range Output | 150SLM |

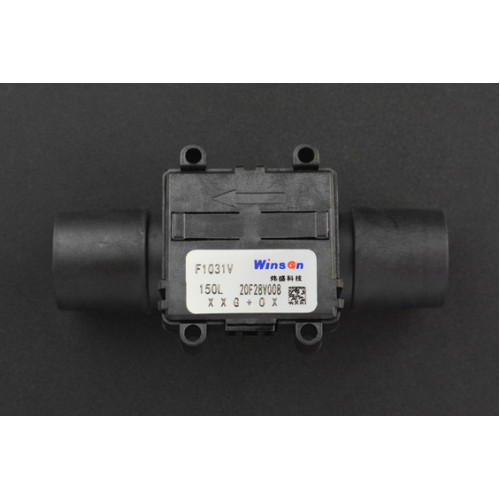

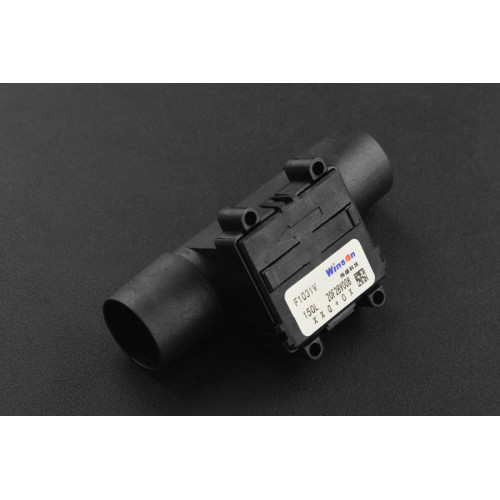

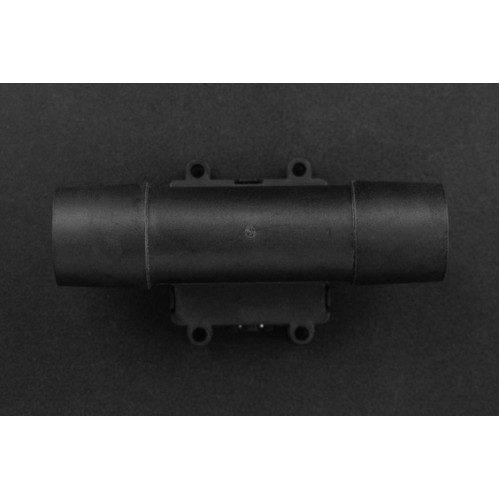

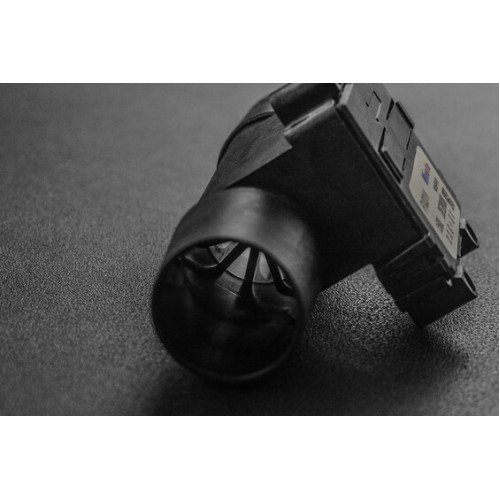

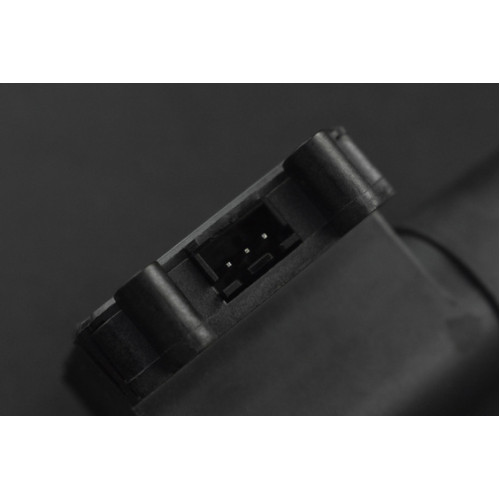

F1031V Mass Air Flow Sensor
- Product Code: SEN0360
- Availability: In Stock
-
$1,456,000.00
- Ex Tax: $1,456,000.00
