Introduction
This is an underwater ultrasonic obstacle avoidance sensor specifically designed for underwater applications. It operates on a wide voltage range of 5-24V and features compact size, minimal blind spots, high precision, and high protection. Its underwater measurement range is from 2-300cm.
With an IP68 protection rating, this sensor can replace a camera for obstacle avoidance and meet the requirements of normal underwater navigation speeds. By using this obstacle avoidance sensor, underwater vehicles can achieve true "unmanned driving" without the need for human observation. Even at a depth of 10m, obstacle avoidance can still be easily accomplished.
Thanks to its small size and minimal blind spots, this sensor takes up minimal space and can be easily integrated into various projects.
Features
- Compact in size, with a small blind zone
- Lightweight and fast response time
- Waterproof level of IP68
Applications
- Underwater robot obstacle avoidance and self-control detection
- Measurement of water depth by underwater robots
Specification
- Measurement Range: 2-300cm
- Measurement Accuracy: ±(0.5+S*0.5%)cm@＜2m, ±(1+S*1%)cm@＞2m
- Operating Voltage: 5-24V
- Standby Current: ≤1mA
- Operating Current: ≤10mA
- Output Mode: UART controlled
- Power-on Startup Time: ≤500ms
- Output Response Time: 10ms
- Angle: 5-10°
- Operating Temperature: -15~50°C
- Storage Temperature: -25~80°C
- Storage Humidity: 65%~90% RH (non-condensing)
Documents
Shipping List
- Underwater Ultrasonic Obstacle Avoidance Sensor (3m) x1
| Specification | |
| Accuracy | ±(0.5+S* 0.5%)cm@＜2m, ±(1+S* 1%)cm@＞2m |
| Baud Rate | 115200 bps |
| Cable Lenght | 100cm |
| Connector | Gravity |
| Output | UART |
| Waterproof Grade | IP68 |
| Power | 5-24V |
| Range Output | 2-300cm |

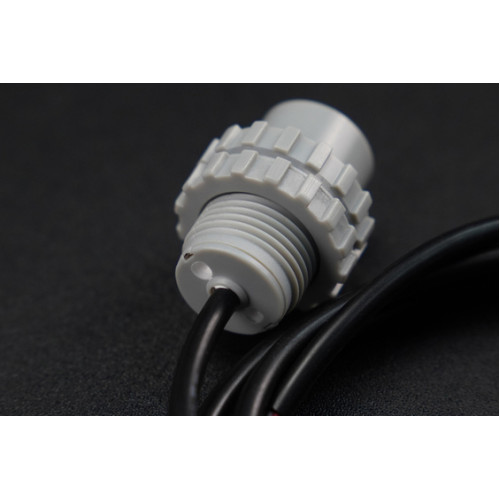

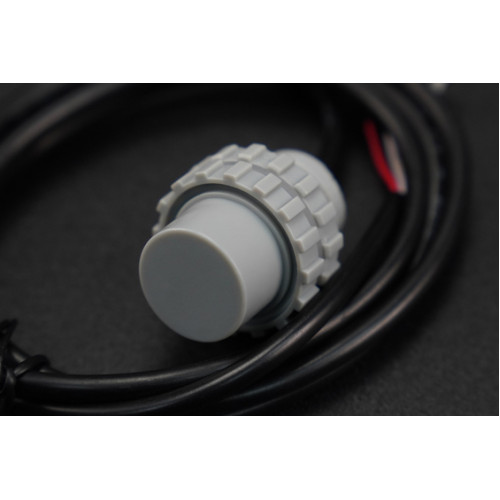

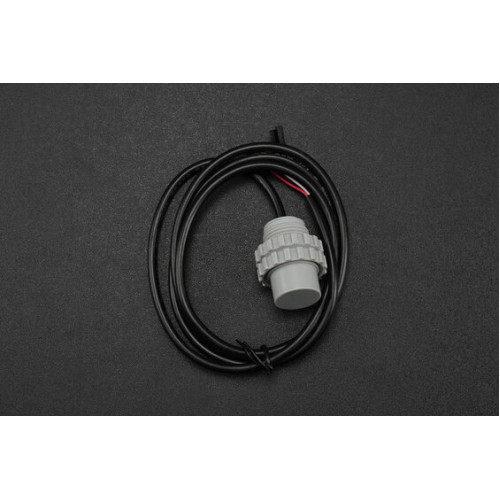

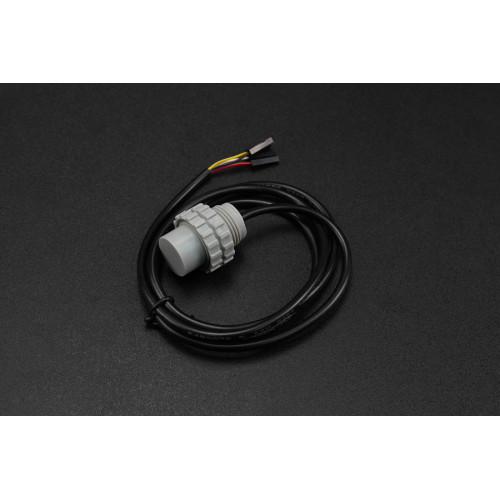

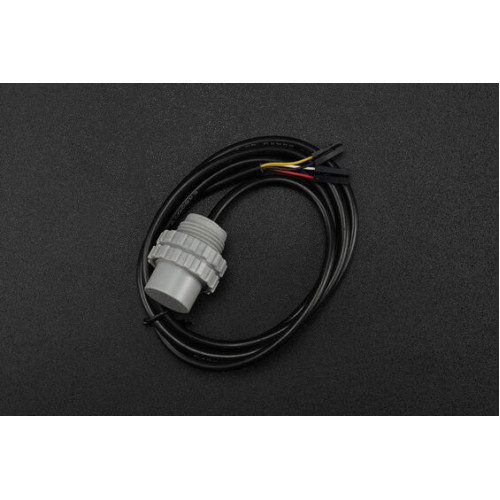

IP68 Underwater Ultrasonic Obstacle Avoidance Sensor (3m, UART)
- Product Code: SEN0598
- Availability: In Stock
-
$480,000.00
- Ex Tax: $480,000.00
Tags: underwater ultrasonic sensor, underwater ultrasonic, ultrasonik, sensor jarak ultrasonik
