Introduction
This is a ToF-based single-point laser ranging sensor for outdoor use. It has 100K LUX resistance to strong ambient light, which means there will be no problems at all when using it on sunny days.
With a detection range of 5cm~15m, the product features distance resolution 1mm, 50Hz data update frequency, 1~2° FOV, and supports UART, I2C, and I/O multiple communication modes(support active and query output data in UART mode).

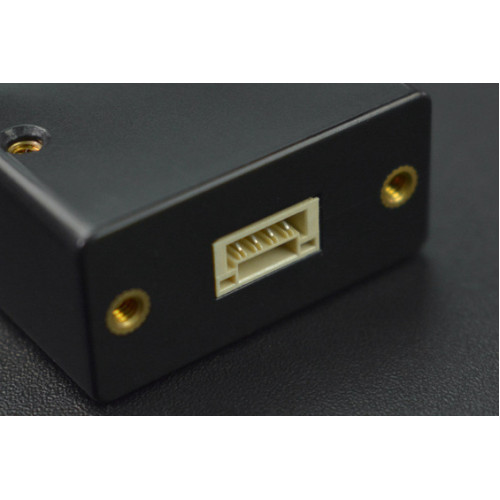

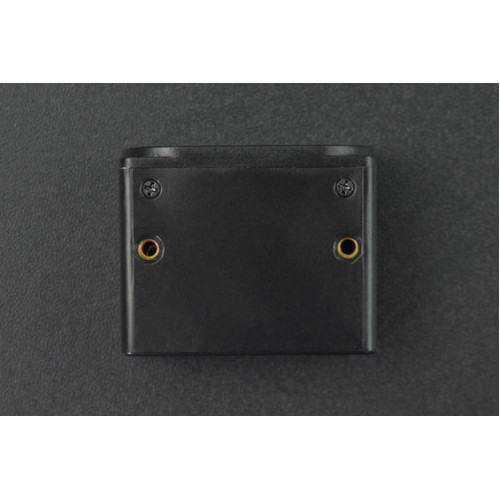

Small in size, there are standard screw holes reserved on the side and bottom of the module, which is convenient for installation in various places. It can be widely used in the fields of drone height setting, route planning, smart car competition and transportation, industrial automation, high-speed measurement, safety monitoring, etc.
Features
- 100K LUX resistance to strong ambient light
- Supports UART, I2C, and I/O multiple communication modes
- Convenient for installation
Applications
- Drone height setting
- Route planning
- Smart car competition and transportation
- Industrial automation
- High-speed measurement and safety monitoring
Specification
- Measuring Range: 5cm~15m
- Measurement Resolution: 1mm
- Ranging Accuracy: [0. 05m, 2m]±2cm, std＜0. 5cm; (2m, 15m]±2%, std＜8cm
- Field of View (FOV): 1~2°
- Output Mode: UART, I2C, I/O (support active and query output in UART mode)
- Refresh Rate: 50Hz
- I2C Default Slave Address: 0x08
- Wavelength: 750~830nm
- Anti-Ambient Light: 100K Lux
- Power Supply Voltage: 3.7~5.2V, reverse connection protection
- Power Consumption: 610mW
- Working Temperature: -10~60℃
- Size: 22.7*28*13.6mm / 0.89*1.10*0.54 inch
- Weight: 7.7g
Documents

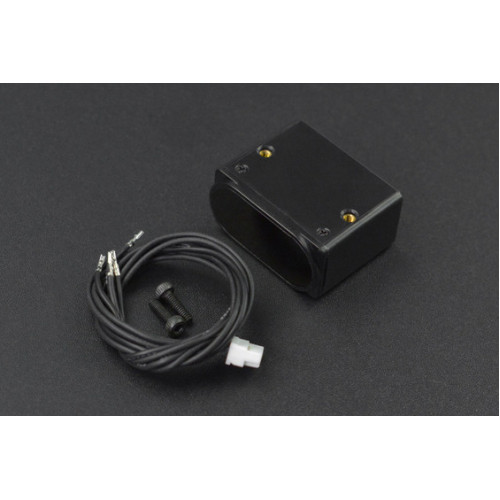

Shipping List
- Outdoor Laser Ranging Module(15m) x1
- GH1.25 4P Adapter Cable x1
- Screws x2
| Specification | |
| Accuracy | [0. 05m, 2m]±2cm, std＜0. 5cm; (2m, 15m]±2%, std＜8cm |
| Baud Rate | 115200 bps |
| Cable Lenght | 100cm |
| Connector | Gravity |
| Output | UART, I2C, I/O (support active and query output in UART mode) |
| Refresh rate | 50Hz |
| Resolution | 1mm |
| Power | 3.7~5.2V, reverse connection protection |
| Range Output | 5cm~15m |

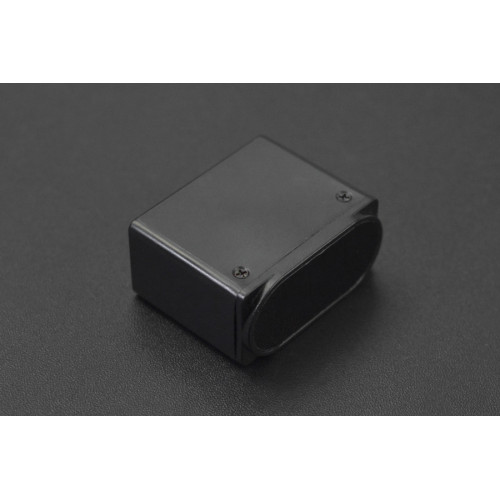

ToF Laser Ranging Module for Outdoor (15m)
- Product Code: SEN0524
- Availability: In Stock
-
$736,000.00
- Ex Tax: $736,000.00
Tags: TOF laser ranging, LiDAR, ranging module sensor, LiDAR
