Introduction
Applications
- Home Service Robot
- Commercial Service Robot
- Special Robot
- Drone
- Industrial Robot
Specification
- Measuring range: 0.03~25m
- Measurement accuracy:
- ±15mm at 0.03m-2m, standard deviation of 5mm;
- ±20mm at 2m-8m, standard deviation of 15mm;
- ±30mm at >8m, standard deviation of 25mm
- Scanning angle: 360°
- Scanning frequency: 10Hz
- Measurement frequency: 21600 Hz
- Angular resolution: 0.167° @10Hz
- Operating voltage: 4.5~5.5V
- Power consumption: ＜300mA @5V
- Communication method: UART
- Anti-ambient light: 60klux
- Operating temperature: -10°C~ 50°C
- Storage temperature: -30°C~ 70°C
- Weight: 45g
Documents
- Datasheet
- Development Manual
- sdk_ldrobotsensorteam_stl_v3.0.5
- LdsPointCloudViewer-tool
- Note: Please download all the files listed below and unzip them into the same folder.
- LdsPointCloudViewer tool Part1
- LdsPointCloudViewer tool Part2
- LdsPointCloudViewer tool Part3
- LdsPointCloudViewer tool Part4
- LdsPointCloudViewer tool Part5
Shipping List

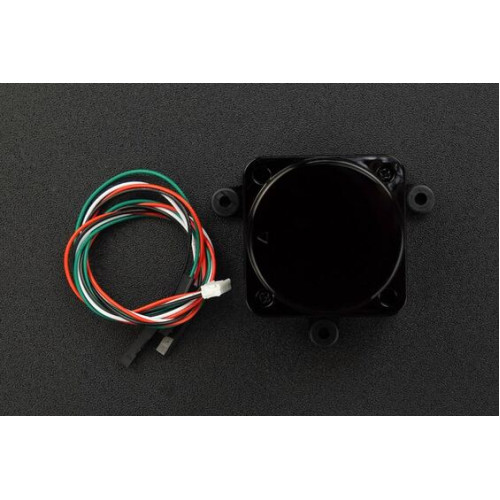

- STL27L 360° LIDAR (25m) x 1
- 4-pin DuPont cable x1
| Specification | |
| Accuracy | ±15mm at 0.03m-2m, standard deviation of 5mm; ±20mm at 2m-8m, standard deviation of 15mm; ±30mm at >8m, standard deviation of 25mm |
| Baud Rate | 115200 bps |
| Cable Lenght | UART |
| Connector | 0.03~25m |
| Output | UART |
| Refresh rate | 4.5~5.5V |
| Resolution | 0.167° @10Hz |
| Power | 4.5~5.5V |
| Range Output | 0.03~25m |

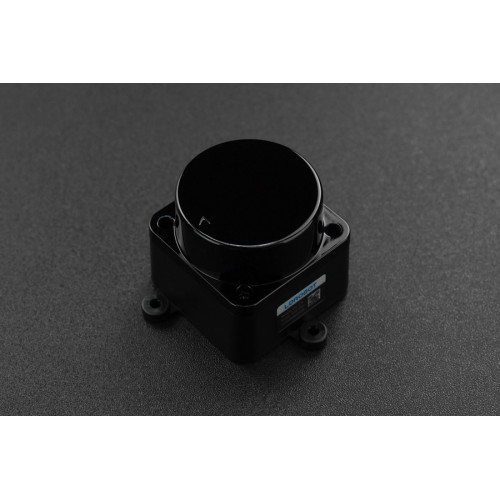

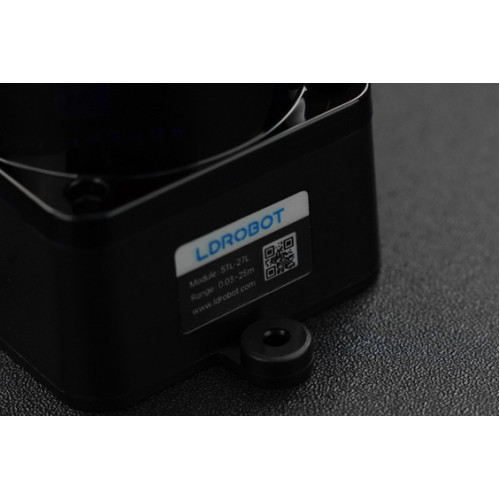

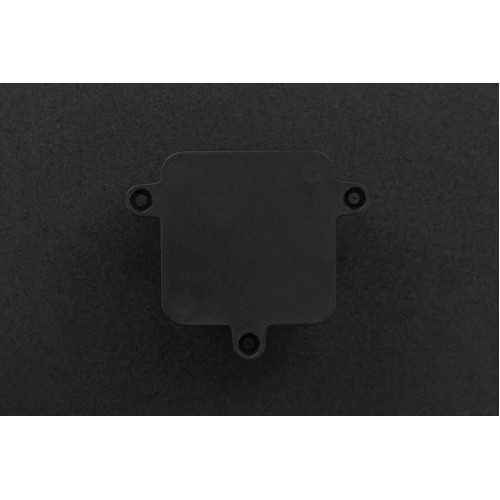

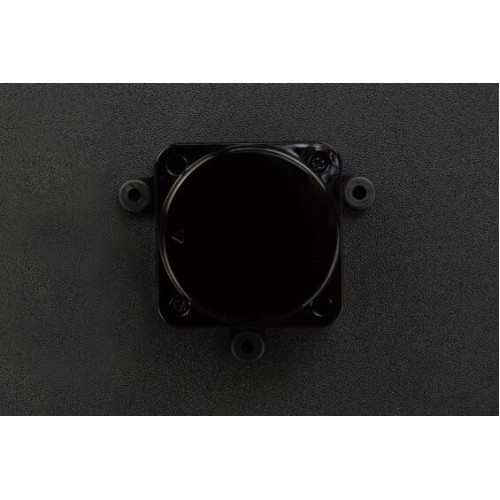

STL-27L 360° DTOF LIDAR Sensor (UART, 25m)
- Product Code: SEN0589
- Availability: In Stock
-
$2,688,000.00
- Ex Tax: $2,688,000.00
Tags: 360 llidar, 360 degree LiDAR, 360 Lidar scanner, 360 Lidar laser
