Introduction

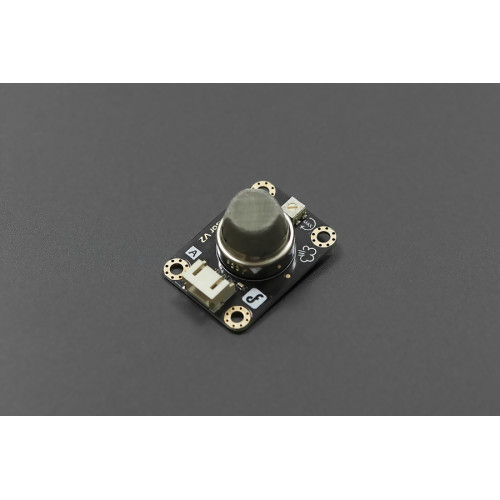

This is an Arduino LPG gas sensor. It has MQ5 probe which is very sensitive with LPG, natural gas , town gas. It is less sensitive with alcohol, cooking fumes and cigarette smoke.
The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.
To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino.
Specification
- Power supply needs: 5V
- Interface type: Analog
- Pin Definition: 1-Output 2-GND 3-VCC
- High sensitivity to LPG, natural gas, town gas
- Small sensitivity to alcohol, smoke
- Fast response
- Stable and long life
- Simple drive circuit
- Size: 40x20mm(1.57"x0.79")
Documents
- Wiki Doc
- MQ5 datasheet
- Schematic
Shipping List
- Arduino LPG Gas sensor (MQ5) x1

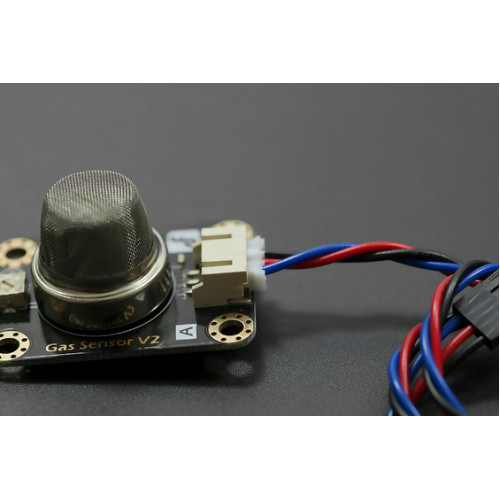

- Gravity Analog Cable x1
| Specification | |
| Baud Rate | 9600 bps |
| Cable Lenght | 15cm |
| Connector | Gravity |
| Output | Analog |
| Power | 5V |
Gravity: Analog LPG Gas Sensor (MQ5) For Arduino
- Brand: DFROBOT
- Product Code: SEN0130
- Availability: In Stock
-
$128,000.00
- Ex Tax: $128,000.00
